Analysis of Core Advantages and Suitable Applications for Four Major Series of Shot Blasting Machines

As the manufacturing sector continues to advance through green upgrades and intelligent transformation, metal surface treatment technologies are constantly evolving. Shot blasting equipment has become essential in industrial production, playing a pivotal role in efficient rust removal, descaling, and workpiece strengthening. With years of deep industry expertise, Junda Machinery offers four major series of shot blasting machines—crawler-type, hook-type, roller conveyor pass-through, and overhead rail-type. Distinguished by their unique performance advantages, reliable quality, and eco-friendly designs, these machines meet the production needs of diverse sectors, serving industries such as casting, steel structures, piping, automotive components, and wind power.

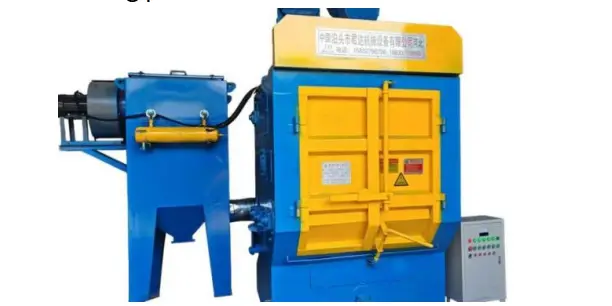

Crawler-type shot blasting machines are primarily used for descaling and removing oxide layers from small-to-medium-sized castings, forgings, and stamped hardware parts weighing up to 150 kg. They can operate as standalone units or be integrated into automated cleaning production lines. During operation, workpieces tumble along with the crawler belt while being subjected to the impact of abrasive media; common models include the Q324, Q326, and Q3210. These machines feature a compact footprint and stable operation, with rubber crawler belts that minimize impact damage to workpieces and reduce operating noise. They are equipped with high-efficiency dust collectors to maintain a clean workshop environment and utilize superior separation systems. Paired with cantilever-style centrifugal blast wheels, the equipment also offers automatic workpiece unloading, effectively reducing manual labor intensity—making it an ideal choice for small and medium-sized manufacturing plants.

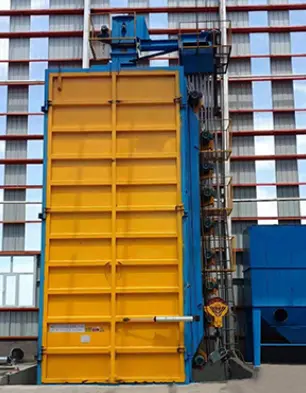

Hook-type shot blasting machines are available in single-hook and double-hook configurations. They utilize 0.2–0.8 mm shot media to clean and strengthen workpiece surfaces, making them suitable for small-to-medium-sized castings and forgings, as well as thin-walled, slender components and large, irregularly shaped weldments. The equipment boasts a load capacity of up to 10,000 kg and a cleaning cycle of approximately 5–7 minutes. Featuring simple operation and an alternating work mode that ensures high productivity, these machines are widely used in industries such as casting, construction, electric motor manufacturing, and machine tool production.

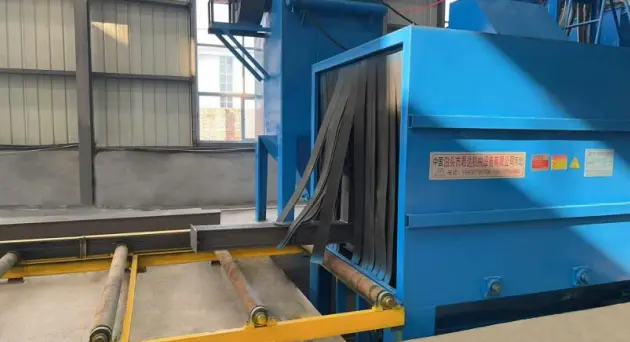

The roller-conveyor shot blasting machine is a piece of integrated equipment designed for steel pretreatment. It utilizes multi-angle shot blasting units to project high-speed abrasive media, effectively removing mill scale, rust, and welding slag from the surfaces of workpieces such as steel plates, H-beams, steel pipes, and space frames; this process enhances paint film adhesion and extends the service life of the components. The system comprises a blasting chamber, a roller conveyor mechanism, an abrasive circulation system, and dust removal and electrical control units. Capable of continuous operation, it can be integrated with production lines for sawing, painting, and drying to achieve fully automated processing, making it widely applicable in industries such as steel structures, petrochemicals, construction machinery, and pipe manufacturing.

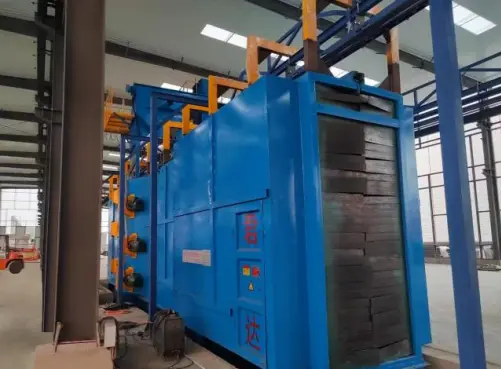

Overhead rail shot blasting machines come in continuous, indexing, and power-and-free configurations, making them suitable for processing large batches of hangable castings, forgings, and weldments. Workpieces are transported and positioned for loading, unloading, and blasting via a suspension chain system. The machine features a PLC control system with self-diagnostic capabilities, ensuring a high level of automation. The blast chamber is constructed from welded structural steel and plate, featuring wear-resistant liners to withstand shot impact; it is equipped with a full-curtain separator and a pulse-jet dust collection system, resulting in high shot utilization and emissions that meet regulatory standards. Cleaning duration is adjustable, and a dual-station cycle handles loading, blasting, and unloading, thereby saving labor and resources; these machines are widely used in mass production environments within the metallurgy, automotive parts, and chemical machinery industries.

Junda Machinery has completed comprehensive technical optimization across its four major series of shot blasting equipment. These systems balance high efficiency, stability, and environmental friendliness, and support non-standard customization to fully meet the surface treatment requirements of diverse industries and operating conditions, thereby helping the manufacturing sector upgrade through improved quality, enhanced efficiency, and greener operations.
