Industrial Shot Blasting Equipment – High‑Efficiency Surface‑Treatment Solution for Heavy‑Duty Applications

industrial shot blaster systems, professionally supplied by Botou Junda Machinery Equipment Co., Ltd., are engineered for high‑volume metal surface‑treatment operations. Drawing on over 20 years of casting‑machinery expertise and our 3,000 m² manufacturing facility, our products delivers consistent Sa2.5 cleanliness grade with throughput ranging from 0.5‑20 tons per hour. Each system features VFD stepless speed regulation of 0.5‑5 m/min, high‑chromium wear‑resistant components (HRC55‑65), and pulse‑jet dust collectors with filtration efficiency ≥99.9 %. Our customisable solutions support steel‑structure rust removal, casting sand cleaning and metal surface peening for power generation, metallurgy, chemical‑processing and mining industries.

What Makes Our industrial shot blaster Technology Critical for Metal Surface Treatment

Modern manufacturing demands consistent surface profiles to guarantee coating adhesion and structural integrity. Conventional manual methods cannot deliver the precision required by ISO 8501‑1 cleanliness standards. Our industrial shot blaster system addresses this challenge by adopting high‑speed centrifugal force technology.

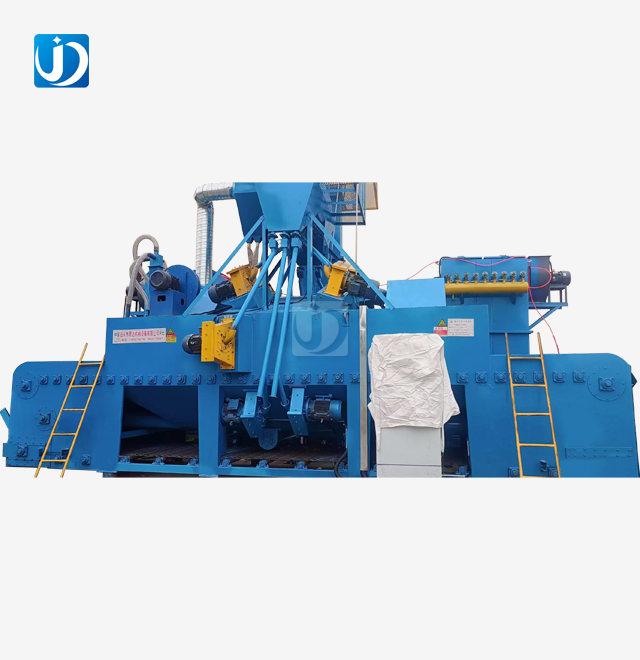

The equipment is fitted with high‑efficiency blast turbines of Q034/Q035/Q036/Q038 models arranged in three‑dimensional layouts. Steel shot is projected from multiple angles at velocities exceeding 80 m/s to achieve complete blind‑spot‑free coverage. This mechanical projection method removes mill scale, rust, welding slag and oxide contaminants while generating optimal anchoring patterns for industrial primers.

Unlike pneumatic sandblasting systems, our closed‑loop design integrates an automatic air‑wash separator to maintain a consistent working abrasive mixture. It produces uniform surface‑roughness values and reduces media consumption. The dual‑control PLC intelligent system allows operators to adjust conveying speed according to workpiece material and rust severity, balancing cleaning quality and production throughput.

Technical Specifications & Performance Parameters

Core Advantages for Industrial Applications

Full Three‑Dimensional Blasting Coverage

Multiple blast turbines are positioned at calculated angles via three‑dimensional layout. High‑velocity steel shot strikes workpiece surfaces simultaneously from all directions. This configuration eliminates shadow effects common in single‑turbine designs and ensures thorough cleaning for complex geometries and recessed areas.

Stable Sa2.5 Cleanliness‑Grade Performance

You obtain consistent surface‑treatment results complying with international coating standards. The system thoroughly removes mill scale, rust layers, welding slag and surface contaminants. Enhanced coating adhesion extends the service life of painted steel structures and treated components.

VFD Stepless Speed‑Regulation System

Boost your production flexibility with infinitely variable conveying speeds. Lighter materials with moderate rust travel faster, while heavily‑corroded forgings receive longer exposure time. This adaptability optimises cleaning quality and operational efficiency without equipment modification.

Low‑Maintenance & High‑Stability Design

Modular construction utilises standardised universal spare parts across all systems. Inspection of wear‑prone components takes minutes instead of hours. No special tools are required for replacing blades, control cages and blast housings. This design philosophy minimises downtime and lowers long‑term operating costs.

Compact & Customisable Structural Layout

Your unique production requirements determine machine dimensions. Cleaning chamber width, height, turbine quantity and overall configuration adapt to specific workpiece sizes. We accommodate workshop‑space constraints and seamlessly integrate equipment into existing production lines.

Key Application Scenarios

Steel‑Structure Manufacturing

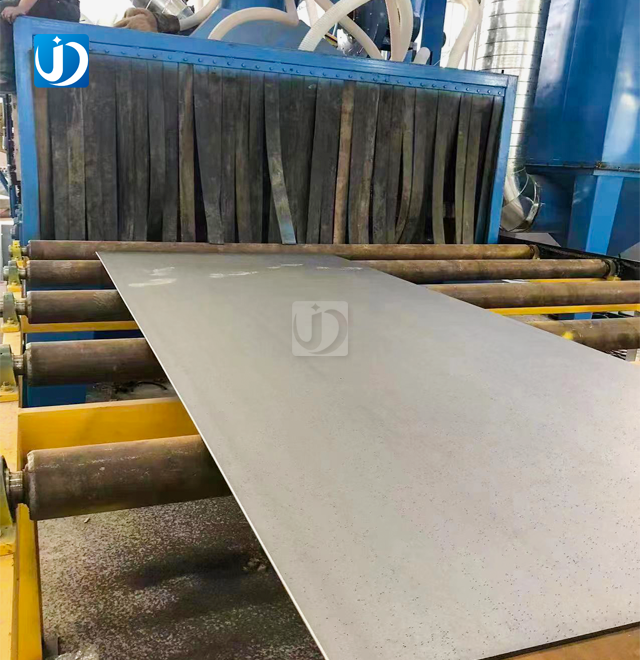

Large H‑beams, steel plates and girders require mill‑scale removal and protective‑coating preparation prior to welding. The equipment processes large‑size components used in bridges, high‑rise buildings and infrastructure projects, where long‑term structural integrity is non‑negotiable.

Automotive Foundry Operations

Engine blocks, gearbox housings and suspension components demand sand removal and deburring. The system cleans complex internal geometries while handling hot castings and prepares surfaces for precision‑machining operations.

Aerospace Shot Peening

Turbine blades, landing‑gear parts and critical airframe components require induced residual compressive stress. Controlled shot peening improves fatigue life and resistance to stress‑corrosion cracking under extreme flight‑environment conditions.

Frequently Asked Questions

Q: What are the primary functions of an industrial shot blaster?

A: This equipment serves as high‑efficiency surface‑treatment technology. High‑velocity projectile streams impact workpiece surfaces to remove mill scale, rust, oil stains, bonded sand and impurities from steel, castings and hardware parts. Meanwhile, it optimises surface roughness, relieves internal stress, improves metal hardness and enhances coating adhesion. As a vital pre‑treatment process for painting, spraying and electroplating, it handles rust removal, refurbishment, peening and surface finishing for industrial applications.

Q: What workpieces and industries benefit from this technology?

A: The equipment processes steel‑structure parts, castings, forgings, hardware fittings, steel plates, profiles, pipelines and construction‑machinery components. It is not suitable for fragile or thin‑walled workpieces prone to deformation. As core standard surface‑treatment equipment, it is widely adopted in steel‑structure processing, machinery manufacturing, foundry and metallurgy, auto‑parts production, shipbuilding, hardware manufacturing, building materials and mould‑making industries.

Q: What are the core differences between shot blasting and sandblasting?

A: Fundamental distinctions exist in working principles and applicable conditions. Shot blasting employs high‑speed impeller projection of steel shot and steel grit, delivering powerful impact force, high efficiency and stable output. It fits batch rust removal and surface peening for heavy‑duty workpieces with higher automation and lower abrasive consumption. Sandblasting sprays abrasive media via high‑pressure airflow, providing fine finishing and high controllability. It suits fine polishing and light rust removal for irregular complex workpieces yet features lower throughput and higher dust generation.

Q: Why is a dust‑collection system necessary?

A: Shot‑blasting operations continuously generate large volumes of contaminants including rust dust, mill‑scale fragments and broken projectile residues. Without supporting dust‑collection equipment, workshops suffer heavy dust pollution and poor visibility, endangering operator health, creating safety hazards, accelerating equipment wear and triggering secondary workpiece contamination together with non‑compliant environmental emissions. Professional dust collectors capture and filter impurities in real time, purify workshop air, secure long‑term stable operation and support eco‑friendly production.

Q: How do you select between steel shot and steel grit for shot blasting?

A: Steel shot is used for cleaning and shot peening where a smooth hammered surface is required. Steel grit is adopted for aggressive coating removal and generating angular profiles for superior paint adhesion. Your selection depends on desired surface texture and subsequent coating requirements.

Quality Certification & International Compliance

Our manufacturing procedures comply with ISO9001 quality‑management system, ISO14001 environmental‑management system and ISO45001 occupational‑health‑and‑safety‑management‑system standards. We provide comprehensive technical documentation including operation manuals, maintenance videos and CE‑marking assistance to satisfy global market‑access requirements.

Every system undergoes strict quality control including blast‑wheel dynamic‑balance testing, blast‑chamber sealing‑integrity verification and dust‑collector CFM‑efficiency validation. Surface‑profile thickness tests are performed with Testex tape and Sa2.5 visual‑cleanliness comparison in accordance with SSPC/NACE standards to ensure professional‑grade performance from your equipment.
